Static Event System

This module is a generation-driven event system.

The main goal is to keep user-facing APIs small and clear while moving infrastructure complexity to generated code and core internals.

Why this approach

Compared to runtime-only registration models, this design gives: - Stronger compile-time contracts for handlers. - Predictable startup semantics: system starts processing only after all expected handlers are registered. - Cleaner user includes: user code mostly consumes system/EventSenders.hpp, generated handler interfaces, and payload types.

High-Level Flow

1. JSON configs define event ids, payload types, queues, and handler subscriptions.
2. Python generators render C++ headers/sources from templates.
3. User handler classes inherit generated interfaces and implement typed handleEvent... methods.
4. User handlers self-register/unregister via helper API.
5. EventSystem routes events through queue + dispatcher to registered handlers.

Core Components

This type of system has some similarities with Dynamic Event System

• EventSystem
• Public facade and lifecycle owner.

• Coordinates dispatcher, queue, and registration tracker.

• EventQueue

• Worker-thread queue and dispatch loop.

• Stores last event payload per event type.

• EventDispatcher

• Maps event id -> list of handler ids.

• Calls handler processEvent(...) if registered.

• RegistrationTracker

• Tracks which generated handlers are registered.

• Declares allRegistered() and provides watchdog logging for missing handlers.

• Generated interfaces (generated/include/handlers/*)

• One interface per configured handler.

• Each interface has typed handleEvent... methods.

• Generated send API (generated/include/system/EventSenders.hpp)

• User-oriented event send helpers.
• Hides payload erasure details.

Include Surface Layout

• User-oriented
• event_system/generated/include/system/EventSenders.hpp
• event_system/include/system/EventSystem.hpp
• event_system/generated/include/handlers/*

• event_system/generated/include/types/*

• Core/internal

• event_system/include/core/*
• event_system/generated/include/core/*

Only EventSenders stays in generated system include folder. Core ids and helpers are intentionally moved under core.

Config Files and Why They Matter

Config directory: event_system/configs

• events_enum.json
• Numeric event ids.

• Source of generated enums for event ids.

• events_types.json

• Payload type model and event -> payload mapping.

• Drives generated payload type headers and sender/handler signatures.

• event_handlers.json

• Handler names, subscriptions, queue assignments.
• Drives generated handler interfaces and event-to-handler map builder.

Benefits of config-first setup:

• Single source of truth for event contracts.
• Repeatable generation with low manual drift.
• Easier review of API changes through JSON diffs.

How to Implement Handlers

1. Generate interfaces.
2. In app/include/app/handlers, create concrete classes inheriting generated interfaces.
3. Implement all required typed handleEvent... methods.
4. Register in constructor, unregister in destructor.
5. Instantiate handlers in your top-level App object so their lifetime is process-scoped.

Typical pattern:

class EventHandler1 final : protected event_system::IEventHandler_1
{
public:
    EventHandler1();
    ~EventHandler1();

private:
    void handleEventTimestamp(const event_system::Timestamp& payload) override;
    void handleEventEventSystemReady() override;
};

How to Generate Interfaces and Sources

From event_system directory:

python3 scripts/generate_all.py --root .

Or individually:

python3 scripts/generate_static_headers.py --root .
python3 scripts/generate_event_handlers_map_builder.py --root .
python3 scripts/generate_event_handlers.py --root .

Build and Run

From StaticEventSystem directory:

cmake -S . -B build
cmake --build build
./build/app/test_app

Stop with Ctrl+C.

Architecture

Class Diagram

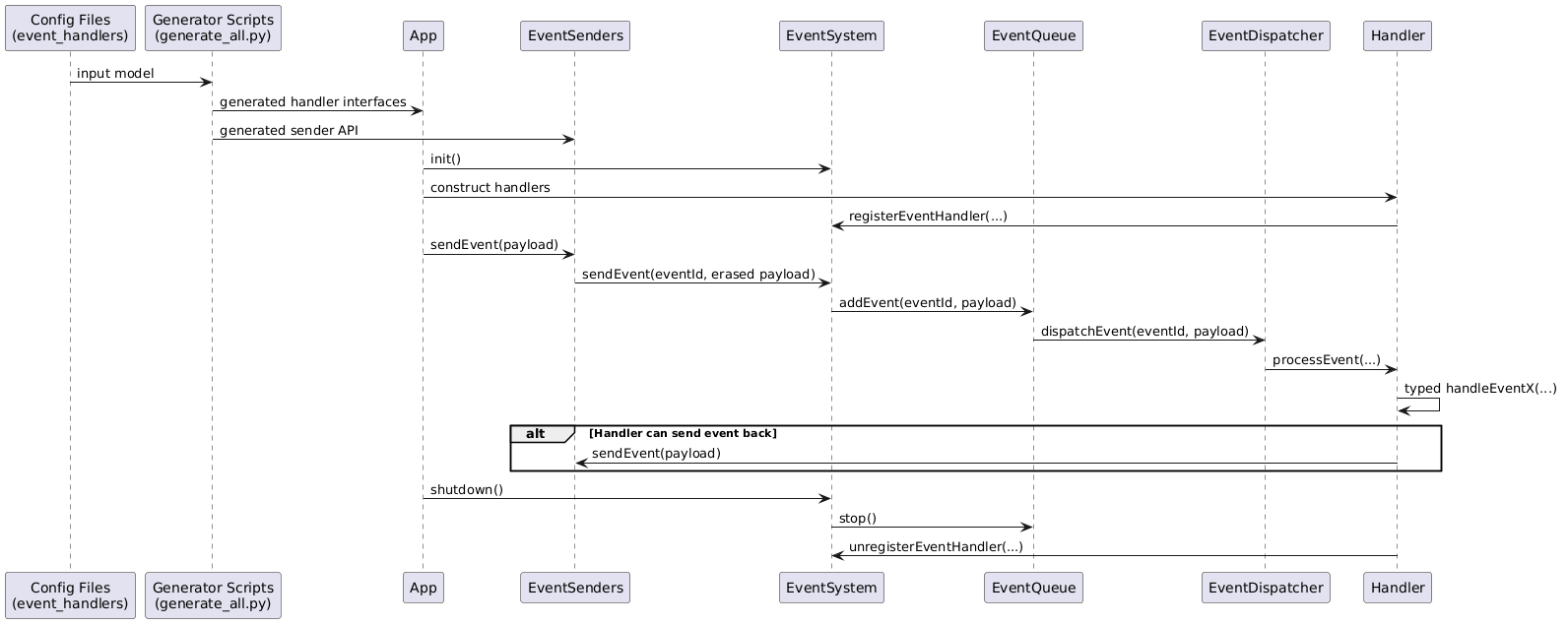

Sequence Diagram

Positive Sides

• Strong typed handler contracts.
• Deterministic startup gate through registration completeness.
• Cleaner user-facing include suggestions.
• Config-driven API evolution.

Negative Sides / Risks

• Generation pipeline adds tooling complexity.
• Bad templates can break many generated files at once.
• Concurrency-sensitive internals still need careful hardening.
• Refactors require synchronized changes in scripts + templates + runtime.

Can it be better?

Yes. Future improvements:

• Generate more runtime internals (queue and registration policy) from config.
• Add schema validation for config files before generation.
• Add CI checks to enforce generator determinism and compile outputs.
• Introduce integration tests for startup/shutdown and unregister semantics.
